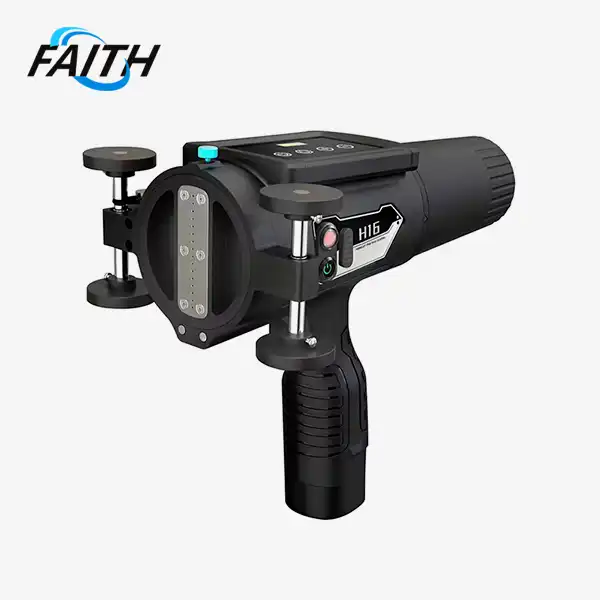

Handheld Large Characters
Optional 7-32-dot online inkjet printer.
Printing font size and number of lines:16 dot matrix: height can be adjusted arbitrarily in the range of 10-60mm, width can be adjusted arbitrarily, and single-line Chinese characters and double-line numbers or English can be printed.
The height can be adjusted arbitrarily in the range of 10-60MM, the width can be adjusted arbitrarily, and the single-line numbers, English, and Chinese characters that come with the system can be printed.
Printing content: real-time date clock, printing batches, counting, shifts, font upside down, left and right flip, real-time date clock, printing batches, counting, shifts, font upside down, left and right flip, date.
Printing direction: 360° can be printedSupport services: 30-day delivery, two-year warranty, support OEM/ODM.
Handheld Large Characters Product Description
Shenyang Xinshi Technology Co., Ltd.'s handheld large character printer is designed for industries that need to quickly and efficiently identify and encode products. It is ideal for use in manufacturing and machining industries to ensure that your product markings are accurate and durable. With its user-friendly interface and rugged design, this printer simplifies the printing process while maintaining high quality standards.
Product Structure
Why Choose a Large Character Printer
1 .Direct inkjet printing with built-in pressure pump and low-pressure air supply system,providing stable air pressure and low failure rate.
2.The control system is simple and reliable, making it easy to operate and maintain.
3.The ink supply system of the device is well-sealed, unaffected by the working environment.
and does not cause ink blockage even after long-term use.
4.The machine has no easily worn parts, resulting in significantly lower maintenance costscompared to ClJ inkjet printers.
Two Styles
16-Dot Matrix And 32-Dot Matrix
 |
16-dot matrix Printing height: 10-60mm |
 |
32-dot matrix Print height: 10-126mm |
Cleaning Function
The black ink pouch can be replaced with a cleaning fluid pouch atany time. lt features a discharge interface, allowing for the instantremoval of black ink from the nozzle and black tubing, and fillingthem with cleaning fluid. This ensures normal operation for thenext use, preventing nozzle clogging and drying out.
Large Capacity Ink Cartridges Multi-Color InkVarious ink types including ketone-based, water-based, and others areavailable and can be customized according to customer needs.It uses cartridge-style ink supply with a 200 mL high-capacity cartridge.enabling quick cleaning and easy replacement.
Ink Cartridge Design
Materials: Corrosion-resistant PA66+GF (nylon + fiberglass)Manufacturing Process: Injection molding, with ultrasonicwelding for the upper and lower shells.
Removable Battery
Powered by a 16,800 mWh battery pack with detachable and replaceablebackup batteries. Charging time is less than 5 hours, and it can operatecontinuously for 6 to 10 hours.
Product Parameters
| Parameter | Specification |
|---|---|
| Software Features | Real-time date and time clock、Batch printing、Counting.Shift printing、Font inversion (upside down)、Horizontal flipping |
| Printing Graphics | Capable of printing logos, symbols, and more |
| Date Code | Supports century, year, month, day, hour, minute, and second |
| Printing Speed | Manual control |
| Screen Display | Displays all printing parameters clearly, with one-touch setting changes |
| Printing Direction | 360-degree adjustable |
| Printing Material | Suitable for both permeable and non-permeable materials |
| Ink Colors | Available in multiple colors including black, red, blue, yellow, white, and others |
| Ink Types | Water-based ink (for permeable surfaces) or oil-based ink(for non-permeable surfaces) |
| Machine Weight | Approximately 1 .5 kg |
Proofing Effect Display
The handheld large character printer demonstrated its capabilities through high-quality samples, showing clear text and logos. Even when exposed to challenging environments, the printed logos and codes remained intact, highlighting the durability and effectiveness of the printer.
Product Details
Nozzle Casing Design
The front face of the nozzlecasing is designed with aninward curve to facilitate therotation of the nozzle.
The single-side protrusion onthe nozzle end helps protectthe nozzle.
Detailed Design
The nozzle allows for adjustableprint height and is stable and durable,capable of withstanding acid andalkaline corrosion.
For more information about the 60mm Industrial Portable Large Character Coding Machine, please feel free to reach out to us at sale01@sy-faith.com. Our team is ready to assist you with any inquiries or further details on how our coding solutions can benefit your business.
FAQ
Q1: What is the character height of the large character handheld inkjet printer?
A2: 16-dot machine 10-60mm
32-dot machine 10-120mm
Q2: What is the printing speed of the handheld printer?
A2: The machine has a synchronous wheel, and the printing speed is manually controlled
Q3: What is the ink capacity?
A3: The ink and cleaning agent are both 200ml
Q4: How many characters are typed?
A4: The 16-point machine can print about 12,000 characters
The 32-point machine can print about 6,000 characters
Q5: What is the content of the print?
A5: The 16-point machine can print Chinese characters, numbers, English, graphics, and can also be mixed
The 32-point machine can print Chinese characters, numbers, English, graphics, and can also be mixed
The 7-point font can print numbers, English, and built-in Chinese characters
Q6: How much information can be stored?
A6: The H16 touch screen machine can store 100 text messages and 100 graphic messages
The H16 WIFI machine can store 200 text messages and 100 graphic messages
The H32 touch screen machine can store 100 text messages and 100 graphic messages
